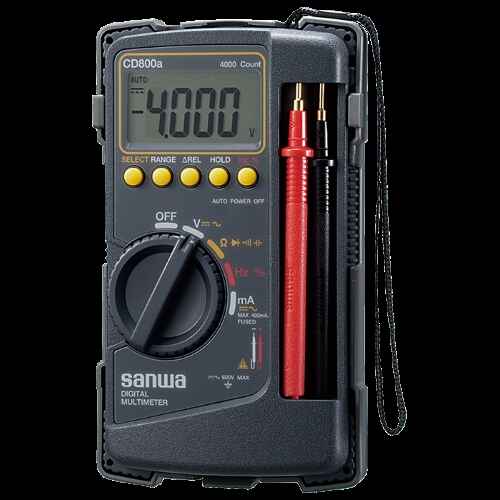

SANWA CD800A DIGITAL Multimeter DMM 4000 Volt Counter Tester MeterGlobal Standard

SANWA CD800A DIGITAL Multimeter DMM 4000 Volt Counter Tester MeterGlobal Standard

~ 3-3 / 4 digits 4000 count
~ 0.7% best accuracy
~ Capacitance measurement
~ Not suitable for measurement of condensers with large leak current.
~ Frequency measurement (AC sine wave only)
~ Data hold / Range hold
~ Relative value
~ Auto power off (30min.) (cancelable)
~ Low power ohm (input voltage 0.4V) at continuity range
~ Solid & protective body cover that can also be used as a tilt stand
~ Chip holder behind the body cover
~ Display : numeral display 4000
~ Sampling rate : 2 times / sec.
~ AC frequency bandwidth : 40-400Hz

Display numeral display: 4000
Sampling rate: 3 times/sec.
Bandwidth: 40Hz～400Hz
Fuse: 0.5A/250V 1.5kA Φ5×20 Ceramic
Battery: R6P(1.5V)x2
Battery life: Approx.500h (manganese battery) at DCV range
Size/Mass: H176×W104×D46mm/Approx.340g
Test lead length/Pin tip: Length: approx. 0.7m/19mm

**Features**

.3-3 / 4 digits 4000 count

.0.7% best accuracy

.Capacitance measurement

*Not suitable for measurement of condensers with large leak current.

.Frequency measurement (AC sine wave only)

.Data hold / Range hold

.Relative value

.Auto power off (30min.) (cancelable)

.Low power ohm (input voltage 0.4V) at continuity range

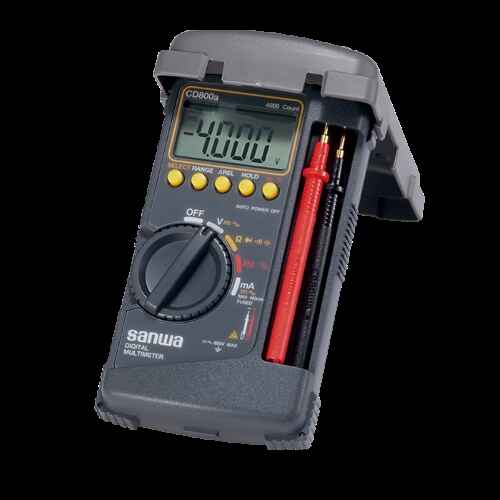

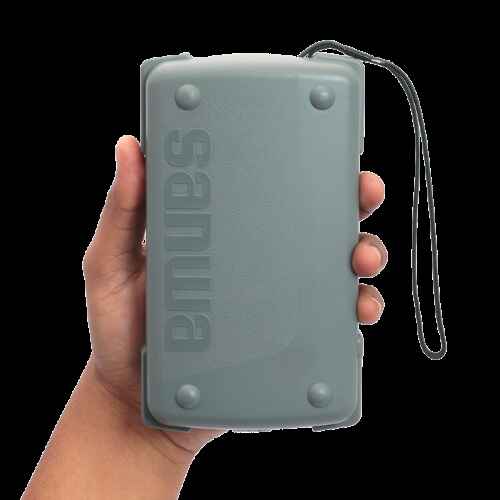

.Solid & protective body cover that can also be used as a tilt stand

.Chip holder behind the body cover

Display : numeral display 4000

Sampling rate : 3 times / sec.

AC frequency bandwidth : 40〜400Hz

**Specifications**

DC Voltage (V) 400m/4/40/400/600V

AC Voltage (V) 4/40/400/600V

DC (A) 40m/400mA

AC (A) 40m/400mA

Resistance (ohms) 400/4k/40k/400k/4M/40M

Diode Test Open Voltage: Approx 1.5V

Size H176 x W104 x D46mm

Weight 340g

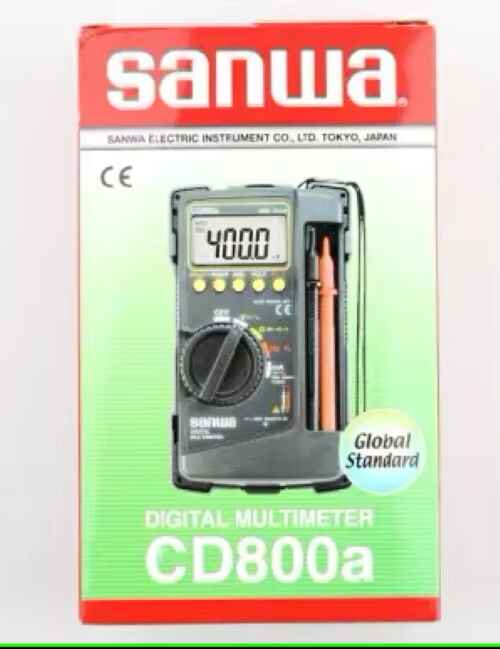

What’s in the box:
SANWA CD800A DIGITAL Multimeter DMM 4000 Volt Counter Tester MeterGlobal Standard, MADE IN Tokyo, JAPAN
